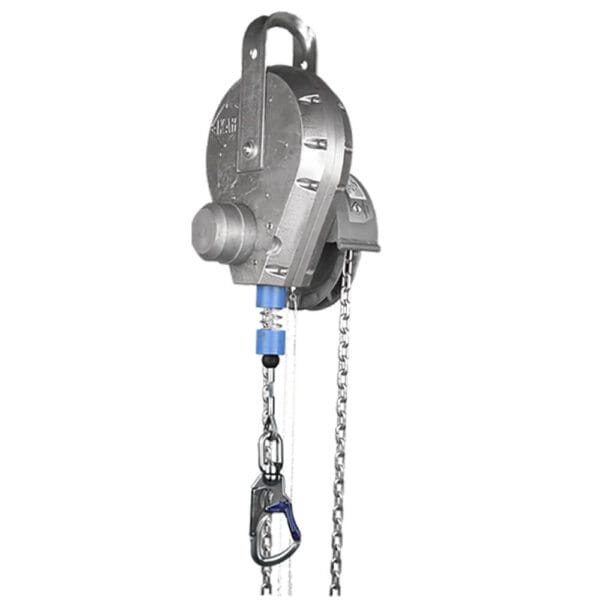

The chain drive of the reel block combines efficiency, ease of handling, robustness and safety. It is specially developed for use in free hanging position (1 attachment point) and allows the rescuer to lift a helpless person without having to use much force. Even if the position of the rescuer in relation to the device is unfavourable, the lift can be carried out without problems.
| Property | HRA 12 Reel | HRA 18 Reel |
|---|---|---|
| Supplier | ICAR | ICAR |
| Article number | 41-HRA 12 Reel | 41-HRA 18 Reel |
| Length | 12 m | 18 m |
| Weight | 13 kg | 17.5 kg |
| Building materials | Aluminium | Aluminium |
| Material: wire | Galvanised steel | Galvanised steel |
| Dimensions | 450 × 195 × 253 mm | 570 × 240 × 273 mm |
| Standard | EN 360:2002, EN 1496:2017 | EN 360:2002, EN 1496:2017 |
| Max. load | 136 kg | 136 kg |
| Number of users | 1 | 1 |
| Working temperature | -40 °C to +50 °C | -40 °C to +50 °C |
| Inspection intervals | 12 months | 12 months |
| Lifespan | Unlimited lifetime with authorised inspection/service | Unlimited lifetime with authorised inspection/service |
| Emergency response function | Reel chain | Reel chain |
| Integrated shock absorption | Yes | Yes |
| Fall indicator | Yes | Yes |
